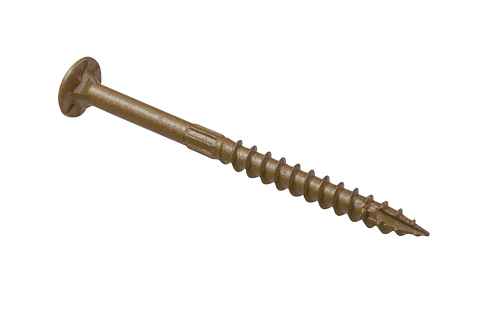

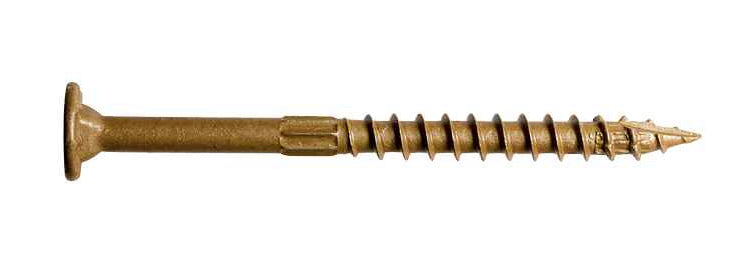

SDWS16300Q .160" X 3" SDWS Framing Screw with Quik Guard Coating 1,000-CT Box with Bit

The SDWS Framing screw is designed and load-rated for replacing 16d, 10d and 8d nails in framing applications. The SDWS Framing screw is superior to nails in holding power and pull-out resistance. It is code listed in IAPMO UES ER-192 and meets 2018 and 2021 IRC® and IBC® code requirements for most common wood framing applications.

The screw has a SawTooth® point that makes for fast installations with reduced torque without predrilling, and its specially designed head countersinks easily to provide a clean, flush finish. The T25 bit holds the 6-lobe recess tightly for more secure drive control. Available in 2 1/2", 3", 3 1/2" and 4" lengths for a variety of uses.

SCREW SPECIFICATIONS
Shank Diameter: .160"
Length:  3"
Count per Box: 1,000
Head Diameter:  .450"
Drive:  T-25 6 Lobe

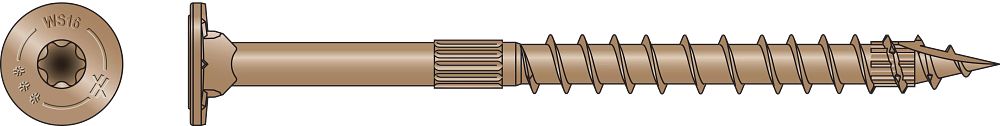

• Washer head with underhead box nibs provides increased bearing in structural applications and provides clean and easy countersinking

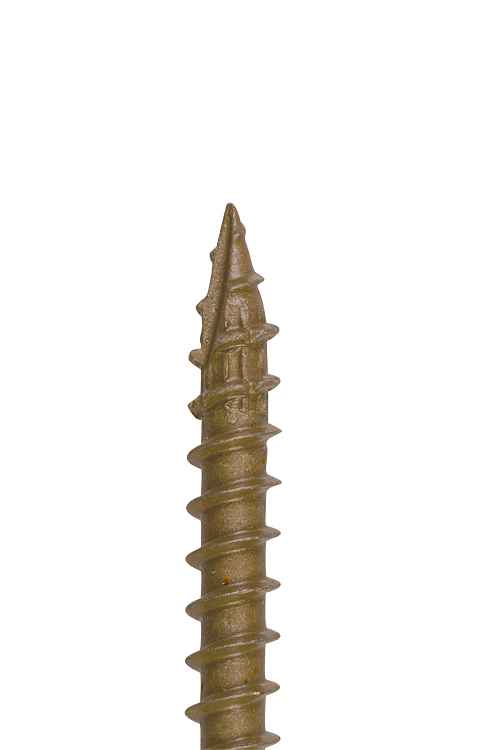

• SawTooth® point ensures fast starts, reduces installation torque and eliminates the need for predrilling in most applications
• The 6-lobe drive provides positive bit engagement resulting in easier installations and longer bit life
• Quik Guard^® coating provides protection in indoor and outdoor applications

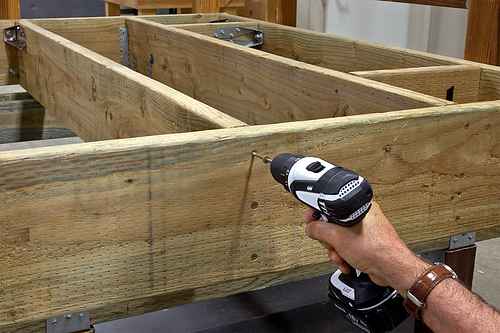

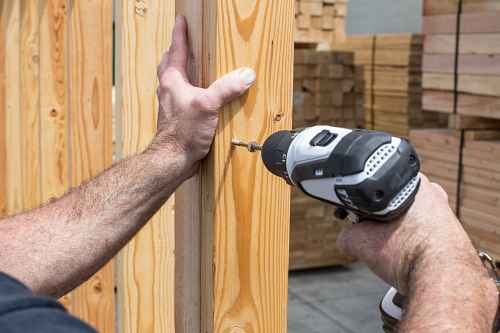

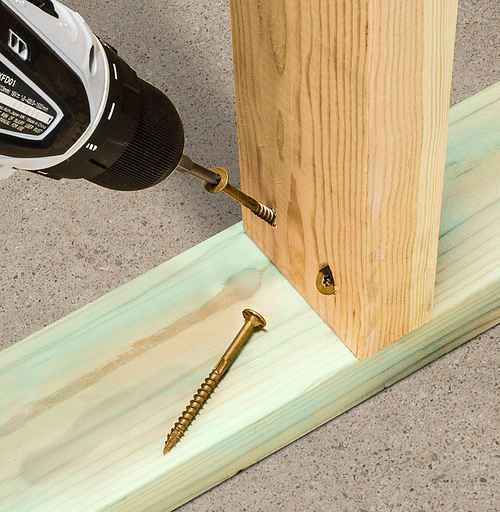

• Multipurpose wood-to-wood and engineered-wood applications, including framing, indoor/outdoor projects

• Driver bit BIT25T-2-R2
