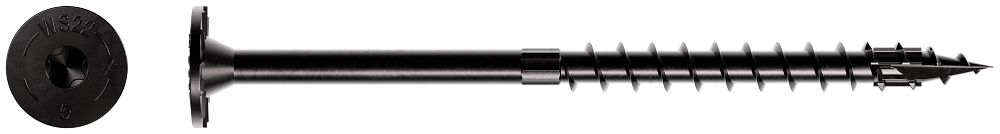

SDWS22500DBB .220" X 5" SDWS Timber Screw with Black Double Barrier Coating 600-CT Box with Bit (Copy)

The Strong-Drive SDWS Timber screw is designed to provide an easy-to-install, high-strength alternative to through-bolting and traditional lag screws. This screw is ideal for the contractor and do-it-yourselfer alike. It is code listed in IAPMO UES ER-192 and meets 2018, 2021, and 2024 IRC and IBC code requirements for most common wood framing applications.

SCREW SPECIFICATIONS
Shank Diameter: .220"
Length:  5"
Count per Box: 600
Head Diameter:  .760"
Drive:  T-40 6 Lobe

• Bold thread design provides superior holding power
• SawTooth® point ensures fast starts, reduces installation torque and eliminates the need for predrilling in most applications
• Underhead nibs allow for head to drive flush to surface with reduced splintering
• Large washer head provides a large bearing area
• Size identification on all SDWS screw heads
• 6-lobe T40 drive provides positive engagement that makes the screw easy to drive and improves bit life (replacement driver bit — BIT40T-134-R2)
• Double-barrier coating provides corrosion resistance equivalent to hot-dip galvanization, making it suitable for certain exterior and preservative-treated wood applications, as described in the evaluation report

• Structural wood-to-wood/engineered including ledgers; mass timber connections including CLT wall-to-wall, floor-to-floor, surface splines and lap joints

• Retail and mini-bulk packs include one 6-lobe, T40 driver bit; bulk packs include two driver bits (BIT40T-134-R2)
